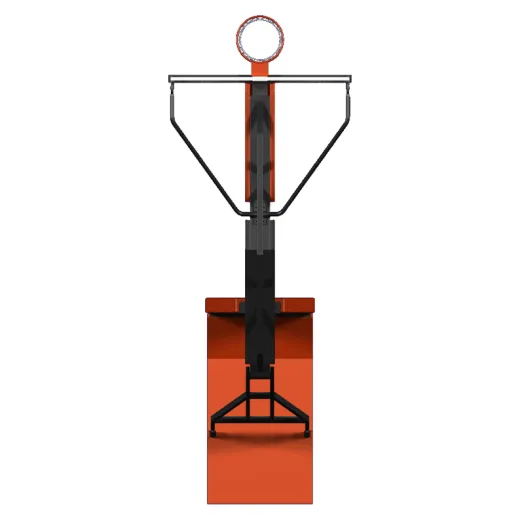

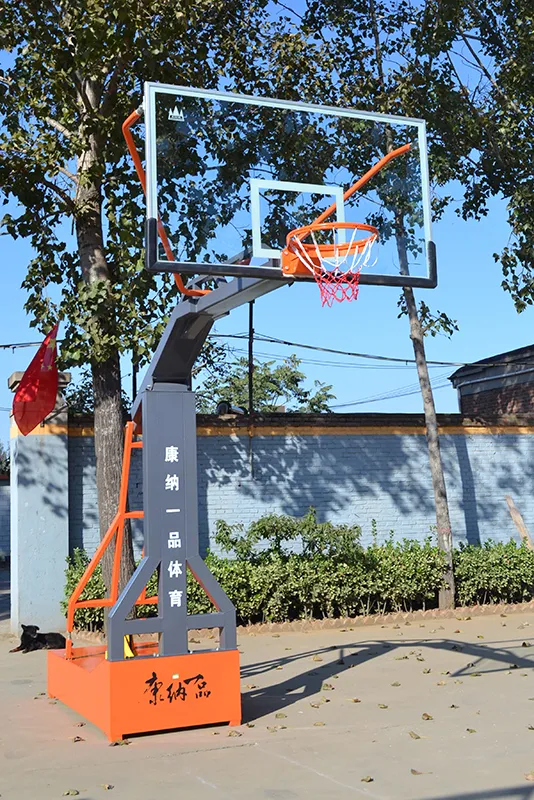

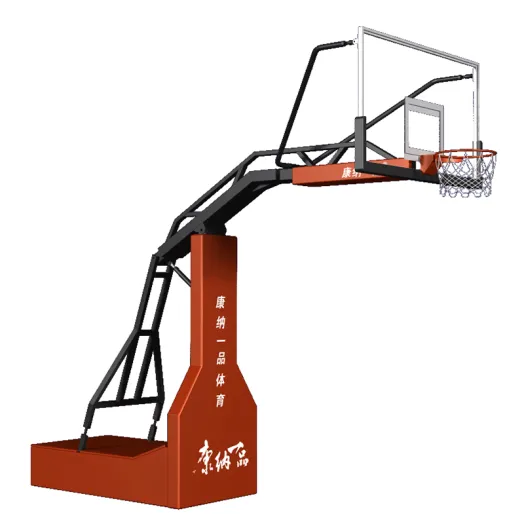

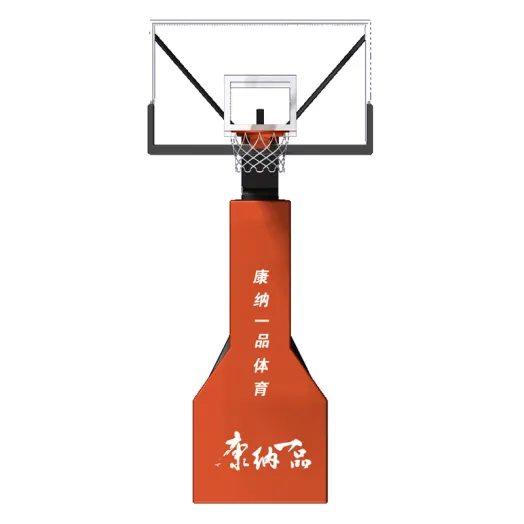

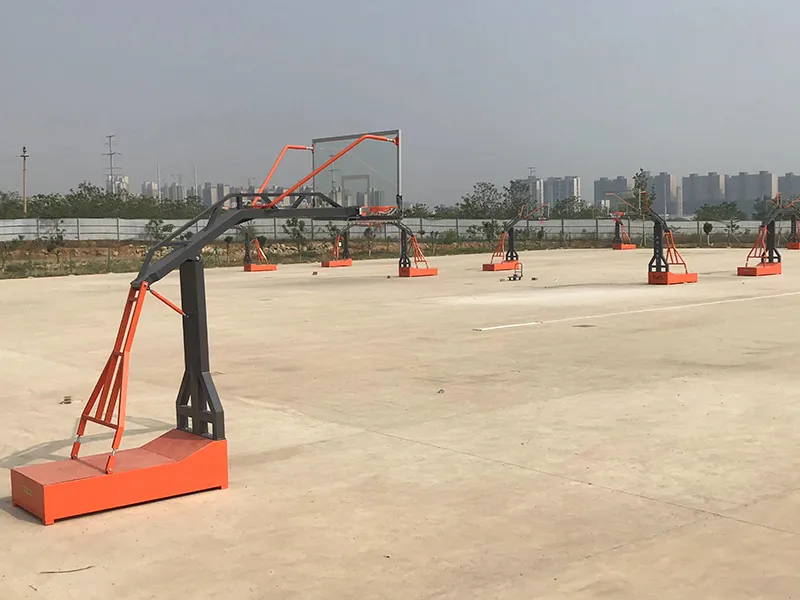

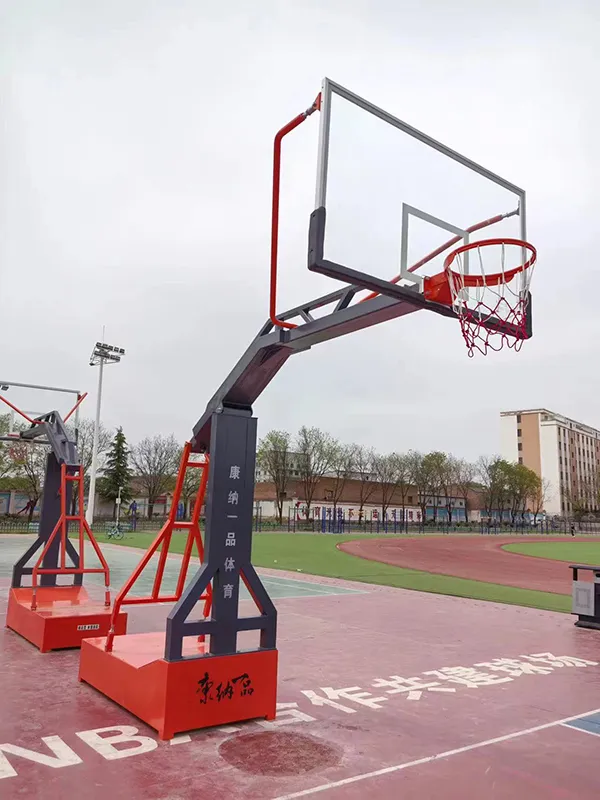

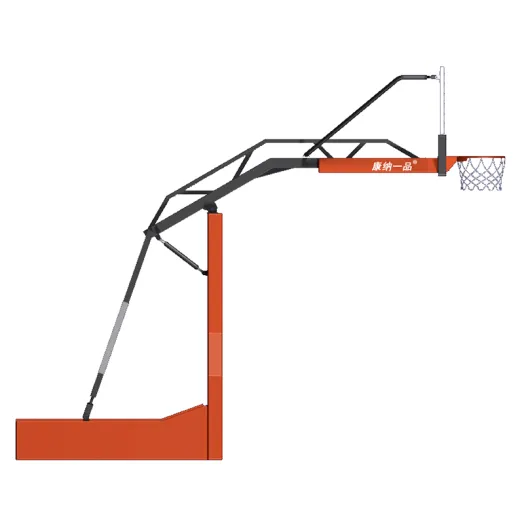

Tempered Glass Basketball Hoop

Made of 200x100x3.0mm rectangular tubing, reinforced with 100x50x2.0mm rectangular tubing, and secondary beams made of 60x40x2.0mm rectangular tubing, all welded together.

Inquire Now Next Product

Product Description

Specifications

Extension Arm Length	2250mm
Rim Height	3050mm
Backboard Dimensions	1800*1050mm
Backboard Material	Aluminum Alloy Frame, Tempered Glass
Base Dimensions	20001000540mm (front) / 390mm (rear)
Net Weight	720KG (excluding counterweight)
Counterweight	≥539KG

Materials and Design

Extension Arm Main Tube: Made of 200x100x3.0mm rectangular tubing, reinforced with 100x50x2.0mm rectangular tubing, and secondary beams made of 60x40x2.0mm rectangular tubing, all welded together.

Main Post: Made of 3.0mm thick sheet metal, combined with 100x100x2.0mm rectangular tubing, with the main column dimensions of 400x100x3.0mm.

Base: Made of 3.0mm thick sheet metal, welded together with internal reinforcement structures.

Rear Support Rod: Made of 60x40x2.0mm rectangular tubing, laser cut and welded together.

Upper Support Rod: Made of φ42x3.0mm round tubing, bent into shape with an automatic tube bending machine.

Features

Fasteners: All fasteners are treated with high-corrosion resistance

Dacromet coating to extend service life.
